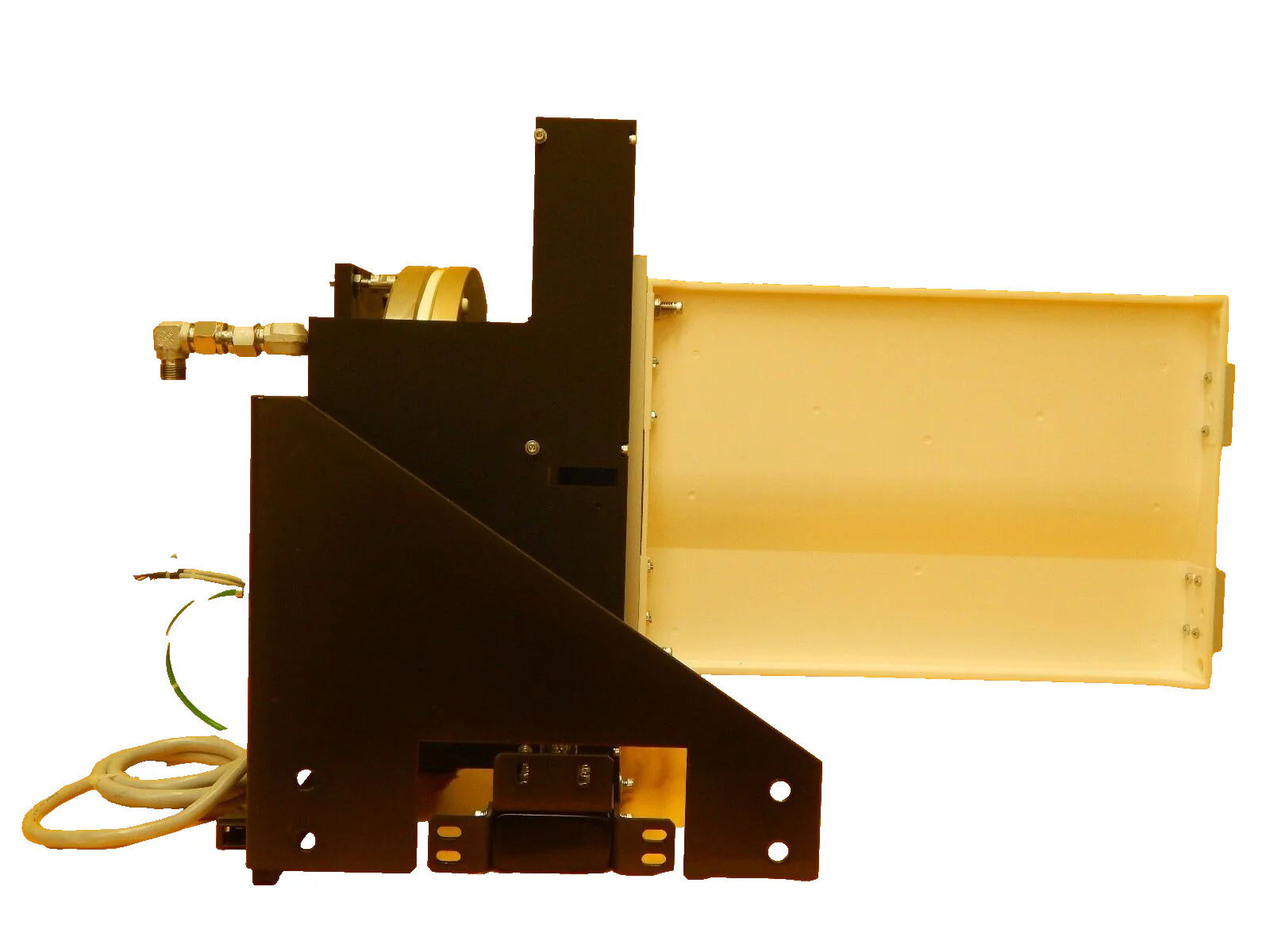

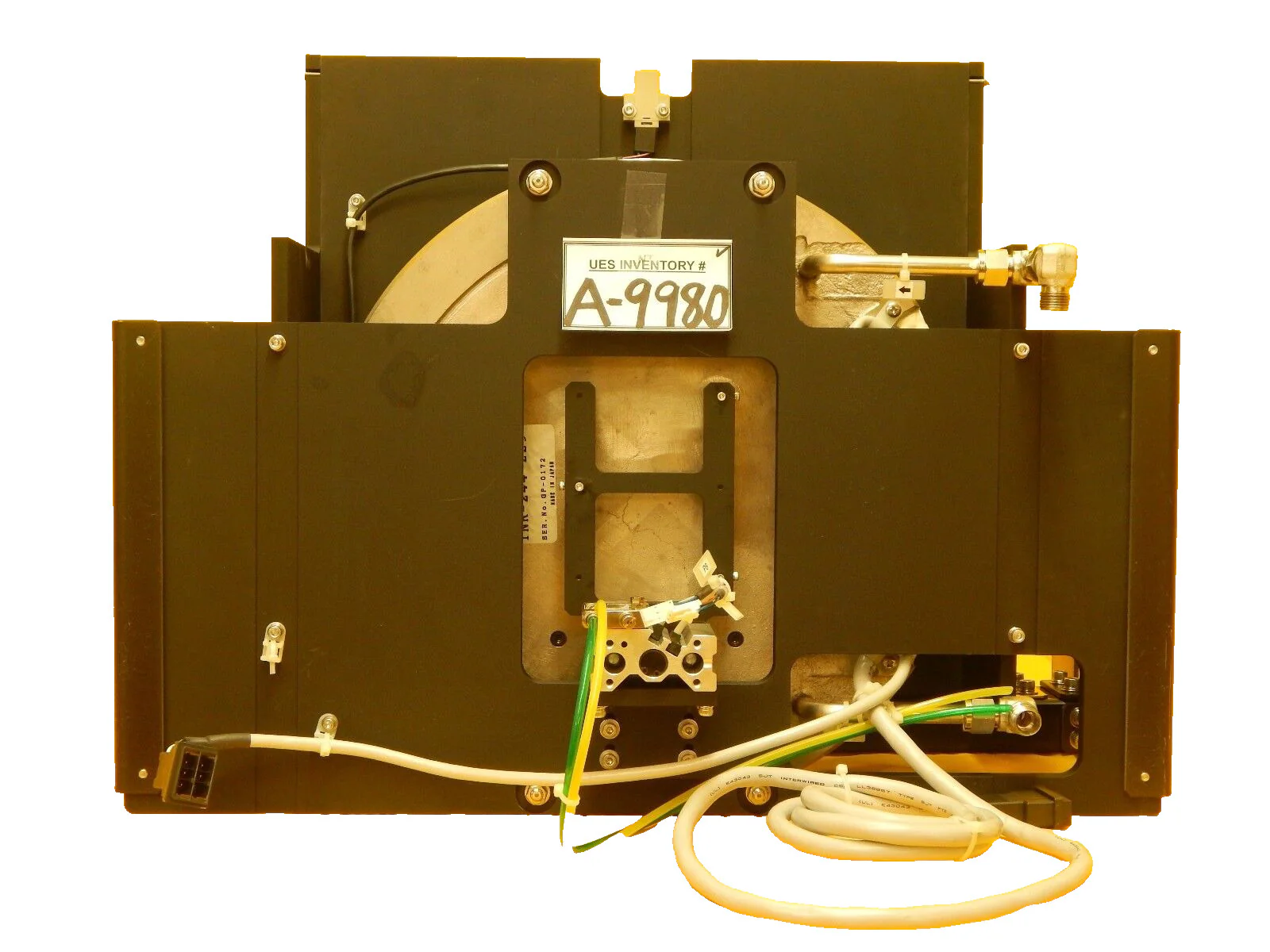

TEL Tokyo Electron 2985-423760-W3 IFB Interface Block Cooling ACT12-300 Working

TEL Tokyo Electron 2985-423760-W3 IFB Interface Block Cooling ACT12-300 Working

TEL Tokyo Electron 2985-423760-W3 IFB Interface Block Cooling ACT12-300 Working

  • Part No: 2985-423760-W3
  • Model No: IFB COOLING ASSY
  • Removed from a TEL Tokyo Electron Clean Track ACT12-300 300mm System

    Part List

    Assembly Part No: 2985-423760-W3 COOLING ASSY

  • 1 2910-206753-12 BASE 1
  • 2910-316001-12 BRACKET 1
  • 2910-316002-12 BRACKET 1
  • 2910-316004-14 PLATE,SIDE 2
  • 2910-411890-11 SUPPORT 4
  • 2910-316005-13 BASE,MIDDLE 1
  • 2910-408621-11 PIN 3
  • 1910-422126-13 PIN CAP 3
  • 2910-411891-11 SPACER 1
  • 2910-408366-11 BRACKET 1
  • 2910-316003-11 PLATE 1
  • 2910-400200-12 PIN 3
  • 2910-412243-11 COVER 1
  • 2910-316006-13 BASE,UPPER 1
  • 2910-411892-11 BRACKET 2
  • 2910-402807-11 SENSOR BRACKET 1
  • 2903-400036-11 W.GUIDE 6
  • 2910-411041-11 SPACER 6
  • 910-413568-2 GAP PIN (0.1) WITH A STEP * 1
  • 024-010709-1 AIR CYLINDER MGQL12-20-Y69A-XB9 1
  • 024-008101-1 SPEED CONTROLLER SC-M5-F-X2 (A3-141019 2
  • 028-003338-1 TUBE JOINT M-5HL-4 2
  • 2980-090808-11 SMC COOLING PLATE INR-244-229 (299880046 1
  • 012-004427-1 SOLENOID VALVEVJ3143T-6LZ-M5-X66 (199880099811 1
  • 021-000340-1 FOR HOLE C-RING RTW-6 SUS304 1
  • 020-002965-1 COUNTERSUNK SCREW M2*5 1-TYPE 6 JCIS10-70
  • 028-002956-1 TUBE JOINT M-5J 1
  • 028-002269-1 TUBE JOINT F900-L-9.52 3
  • 028-002285-1 TUBE JOINT F900-PC-9.52 1

    This item is working surplus. The physical condition is good, but there are signs of previous use and handling.

  • Sale Details

    • Item Condition: Working, 90 Day Warranty
    • Estimated Packed Shipping Dimensions: L x W x H = 36"x24"x20" @ 66 lbs.
    • Shipping Terms: All Domestic and International shipping quotes and/or fees are subject to change due to packaging requirements, custom packing, transport rate fluctuations, and supply chain demands. We will contact you regarding any shipments that require or incur additional after purchase packing fees or rate changes.
    • Only items pictured are included: If a part is not pictured, or mentioned above, then it is not included in the sale. Pictured test equipment is not included or available for sale.
    • For items with multiple quantities: The pictured item is not necessarily the one that will be sent. Serial numbers or country of manufacture may vary.
    • New, Refurbished, and Working items are sold with a 90-Day Satisfaction Guarantee
