TEL Tokyo Electron 300mm DEV Develop Process Station with Chuck Lithius Surplus

TEL Tokyo Electron 300mm DEV Develop Process Station with Chuck Lithius Surplus

TEL Tokyo Electron 300mm DEV Develop Process Station with Chuck Lithius Surplus

  • Model No: DEV ASSY
  • Develop Process Station
  • Removed from a TEL Tokyo Electron 300mm Clean Track Lithius System
  • Sold As-Is
  • Made in Japan

    Parts List (approximation, parts may vary or not be included or installed)

  • Assembly Part No: 5085-412352-13 FRAME ASSY,BASE
  • Assembly Part No: 5085-412349-12 BASE(MIDDLE) ASSY
  • Assembly Part No: 5087-404181-12 CUPBASE ASSY
  • Assembly Part No: 5087-403368-12 3PIN ASSY
  • Assembly Part No: 5085-409612-15 COVER(CUPBASE) ASSY
  • Assembly Part No: 5087-401364-13 OUTCUP ASSY
  • Assembly Part No: 5087-400475-16 ARM(L) ASSY
  • Assembly Part No: 5085-412389-11 BASE(SCAN) ASSY
  • Assembly Part No: 5087-402854-11 MOTOR(L) ASSY
  • Assembly Part No: 5085-404442-12 PULLEY ASSY
  • Assembly Part No: 5085-405111-11 WASHERNOZZLE ASSY
  • Assembly Part No: 5085-407386-16 AIR OPE ASSY(BR)
  • Assembly Part No: 5087-403489-15 SCAN(ARM-B) ASSY
  • Assembly Part No: 5085-412524-12 COVER ASSY
  • Assembly Part No: 5085-412353-13 FRONTBOX ASSY
  • Assembly Part No: 5087-403481-11 E-BOX(DEV) ASSY
  • Assembly Part No: 5085-412354-13 SUPPORT ASSY
  • Assembly Part No: 5087-400478-15 FRAME ASSY,MOTOR
  • Assembly Part No: 5085-412380-13 DUCT(DEV)ASSY

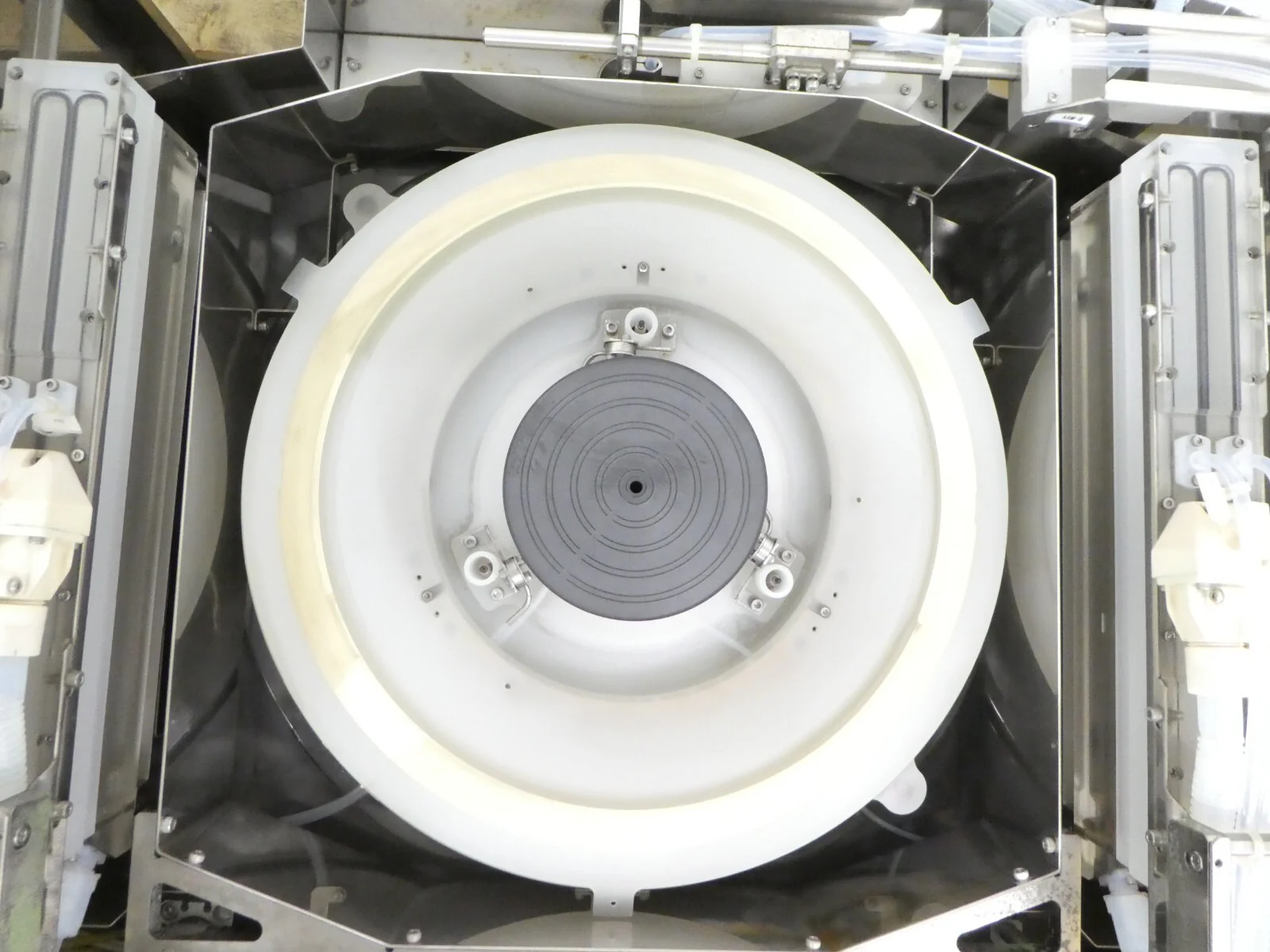

  • Assembly Part No: 5085-411385-11 CHUCK(SS) ASSY
  • Assembly Part No: 5087-400476-16 ARM(R) ASSY
  • Assembly Part No: 5087-400477-11 MOTOR(R) ASSY
  • Assembly Part No: 5085-404442-12 PULLEY ASSY
  • Assembly Part No: 5085-413053-11 NOZZLE TOP(NLD) ASSY
  • Assembly Part No: 2985-494405-11 NOZZLE(NLD-12) ASSY
  • Assembly Part No: 5085-404315-17 LD BATH ASSY
  • Assembly Part No: 5085-401943-11 SUPPORT ASSY(NLD)
  • Assembly Part No: 5085-404692-14 WATERBLOCK ASSY(NLD)
  • Assembly Part No: 5087-400486-15 VALVE ASSY(AMF)
  • Assembly Part No: 5085-404310-15 AIR OPE ASSY (1STLINE)
  • Assembly Part No: 5085-413053-11 NOZZLE TOP(NLD) ASSY
  • Assembly Part No: 2985-494405-11 NOZZLE(NLD-12) ASSY
  • Assembly Part No: 5085-402156-16 LD BATH ASSY (2NDLINE)
  • Assembly Part No: 5085-401943-11 SUPPORT ASSY (NLD)
  • Assembly Part No: 5085-404692-14 WATERBLOCK ASSY(NLD)
  • Assembly Part No: 5087-400487-15 VALVE ASSY(2NDAMF)
  • Assembly Part No: 5085-405438-15 AIR OPE ASSY(2NDLINE)
  • Assembly Part No: 5085-404690-13 SRN ASSY
  • Assembly Part No: 5085-405145-16 AIR OPE ASSY (SR)
  • Assembly Part No: 5085-404745-15 AIR OPE ASSY
  • Assembly Part No: 5085-409683-13 CUP ASSY (LD)
  • Assembly Part No: 5085-404368-13 MANIFOLD ASSY (4LINE)
  • Assembly Part No: 5085-408453-11 SOLENOID(BLOCK) ASSY
  • Assembly Part No: 5085-409482-11 GUIDE(SCAN) ASSY

    This item is untested surplus and is being sold as-is. The physical condition is good and there are visible signs of previous use and handling.

    • Sale Details

    • Item Condition: Sold As-Is for Parts or Repair
    • Estimated Packed Shipping Dimensions: L x W x H = L x W x H = L x W x H = 36"x36"x30" @ 250 lbs.; Requires Freight Shipping
    • Shipping Terms: All Domestic and International shipping quotes and/or fees are subject to change due to packaging requirements, custom packing, transport rate fluctuations, and supply chain demands. We will contact you regarding any shipments that require or incur additional after purchase packing fees or rate changes.
    • Only items pictured are included: If a part is not pictured, or mentioned above, then it is not included in the sale. Pictured test equipment is not included or available for sale.
    • For items with multiple quantities: The pictured item is not necessarily the one that will be sent. Serial numbers or country of manufacture may vary.
