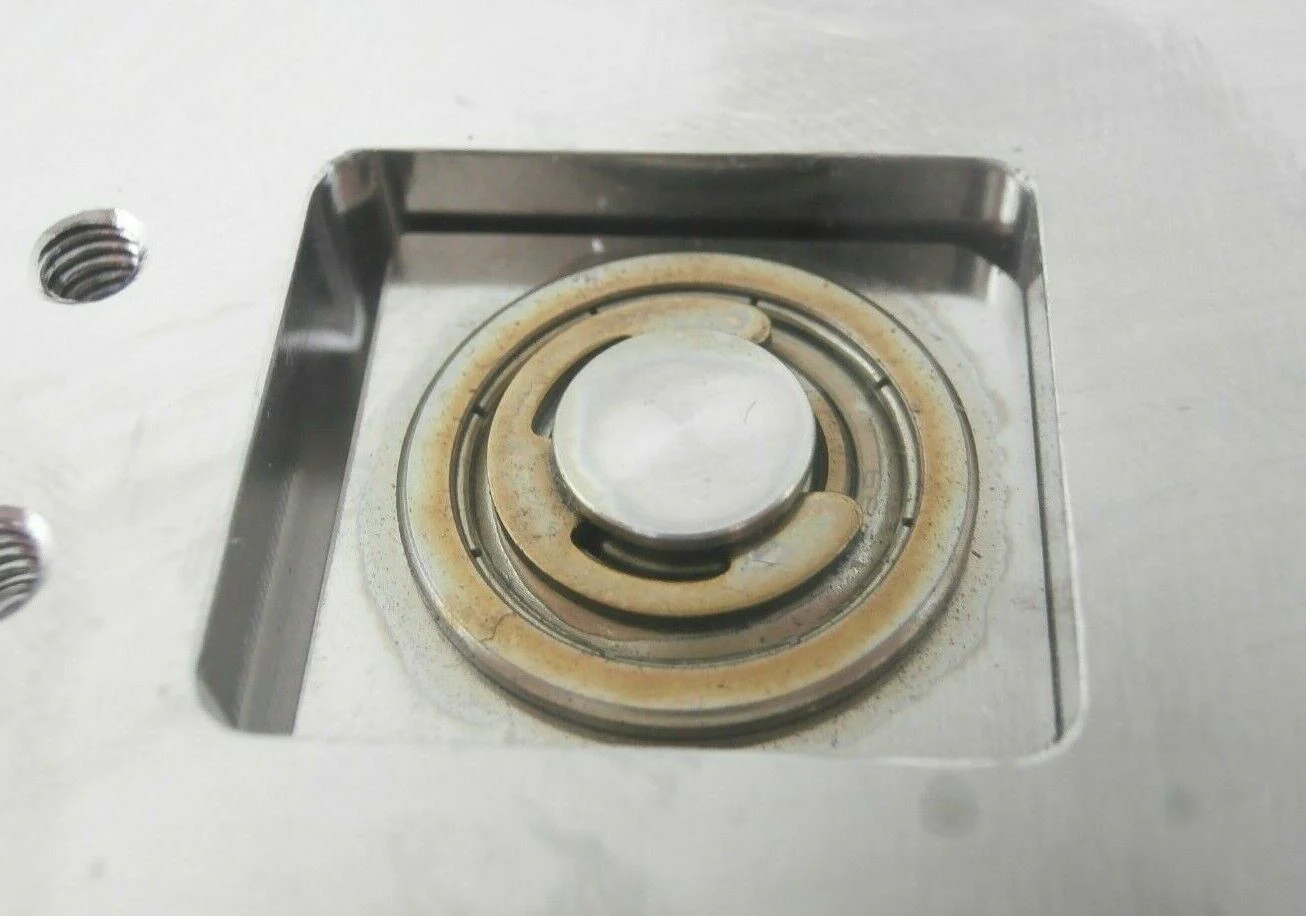

This TEL Tokyo Electron 5087-403489-15 Scan ARM-B DEV Complete Assembly is used working surplus. The hoses are cut and will need to be replaced (see photos). The physical condition is good, but there are signs of previous use and handling.
Sale Details
Item Condition: Used Working, 90 Day Warranty
Estimated Packed Shipping Dimensions: L x W x H = 24"x24"x24" @ 25 lbs.
Only items pictured are included: If a part is not pictured, or mentioned above, then it is not included in the sale. Pictured test equipment is not included or available for sale.
For items with multiple quantities: The pictured item is not necessarily the one that will be sent. Serial numbers or country of manufacture may vary.
Items are sold with a 90-Day Satisfaction Guarantee
Lister 31
Listed with ExportYourStore.com
$866.10
Original: $2,887.00
-70%
TEL Tokyo Electron 5087-403489-15 Scan ARM-B DEV Complete Assembly Lithius Spare—
$2,887.00
$866.10
Description
TEL Tokyo Electron 5087-403489-15 Scan ARM-B DEV Complete Assembly Lithius Spare
Inventory # A-18742
Part No: 5087-403489-15
Model No: SCAN(ARM-B) ASSY
DEV Develop Process Station
Removed from a TEL Tokyo Electron Clean Track Lithius System
Parts List (approximation, parts may vary)
Assembly Part No: 5087-403489-15, SCAN(ARM-B) ASSY
5010-308886-11 BASE,SCAN(ARM-B) 1
5010-308903-11 BRACKET,MOTOR 1
2902-400093-11 PULLEY(S) 1
5010-304895-12 PLATE 1
2910-414906-12 BLOCK,BELT 1
5010-404151-11 CLAMP,BELT 1
5010-407033-11 BRACKET 1
5010-313829-11 SHUTTER (ARM-B) 1
5010-305075-11 BRACKET 1
5010-407029-11 BRACKET(S) 1
5010-403460-11 BASE,PULLEY 1
5010-400218-11 SHAFT 1
2902-400093-11 PULLEY(S) 1
5010-202912-12 BASE(ARM-B) 1
5010-406022-11 BAR(ARM-B) 1
5010-406023-11 CLAMP,TUBE(R) 1
5010-307190-11 COVER(ARM-B) 1
5010-406009-11 CLAMP(3),TUBE 2
5018-000003-11 LM GUIDE SHW14CR1UUME+470LM 1
5024-000058-11 AIR CYLINDER MXS16-75BS-F9N-X1017A 1
023-002466-1 BELT,TIMING B60S3M927G 1
026-005090-1 POSITIONING PIN SJPDA4-6 2
047-003645-1 FLEXIBLE DUCT TKP0130-15BR20-21L 1
047-003567-1 #BRACKET TKP0130-15B PA 2
022-100726-1 BEARING F688ZZ 2
047-000534-1 CABLE MOUNT TA1S8-M 1
017-002107-1 TUBE PN-4-4*2.5 YELLOW 1
028-003338-1 FITTING,TUBE M-5HL-4 2
028-001387-1 FITTING,TUBE EUC4-TR 2
020-000032-1 CAP SCREW M4*10 SUS304 10
020-000042-1 CAP SCREW M4*20 SUS304 1
020-002913-1 CAP SCREW M4*8 SUS304 W/SPR & FLAT WASHER 2
020-001126-1 SET SCREW M4*5 SUS304 4
020-000005-1 CAP SCREW M3*6 SUS304 14
020-001089-1 CAP SCREW M3*14 SUS304 5
020-001116-1 CAP SCREW M5*8 SUS304 2
020-000518-1 CAP SCREW M3*4 SUS304 2
021-100309-1 E-RING ETW-6 SUS304 2
020-001167-1 CAP SCREW M5*10 SUS304 2
020-000080-1 CAP SCREW M6*10 SUS304 1
020-000028-1 CAP SCREW M4*6 SUS304 14
020-001155-1 CAP SCREW M5*30 SUS304 2
020-000821-1 CAP SCREW M3*6 SUS304 W/SPR&FLAT WASHER 3
This TEL Tokyo Electron 5087-403489-15 Scan ARM-B DEV Complete Assembly is used working surplus. The hoses are cut and will need to be replaced (see photos). The physical condition is good, but there are signs of previous use and handling.
Sale Details
Item Condition: Used Working, 90 Day Warranty
Estimated Packed Shipping Dimensions: L x W x H = 24"x24"x24" @ 25 lbs.
Only items pictured are included: If a part is not pictured, or mentioned above, then it is not included in the sale. Pictured test equipment is not included or available for sale.
For items with multiple quantities: The pictured item is not necessarily the one that will be sent. Serial numbers or country of manufacture may vary.
Items are sold with a 90-Day Satisfaction Guarantee
Lister 31
Listed with ExportYourStore.com
