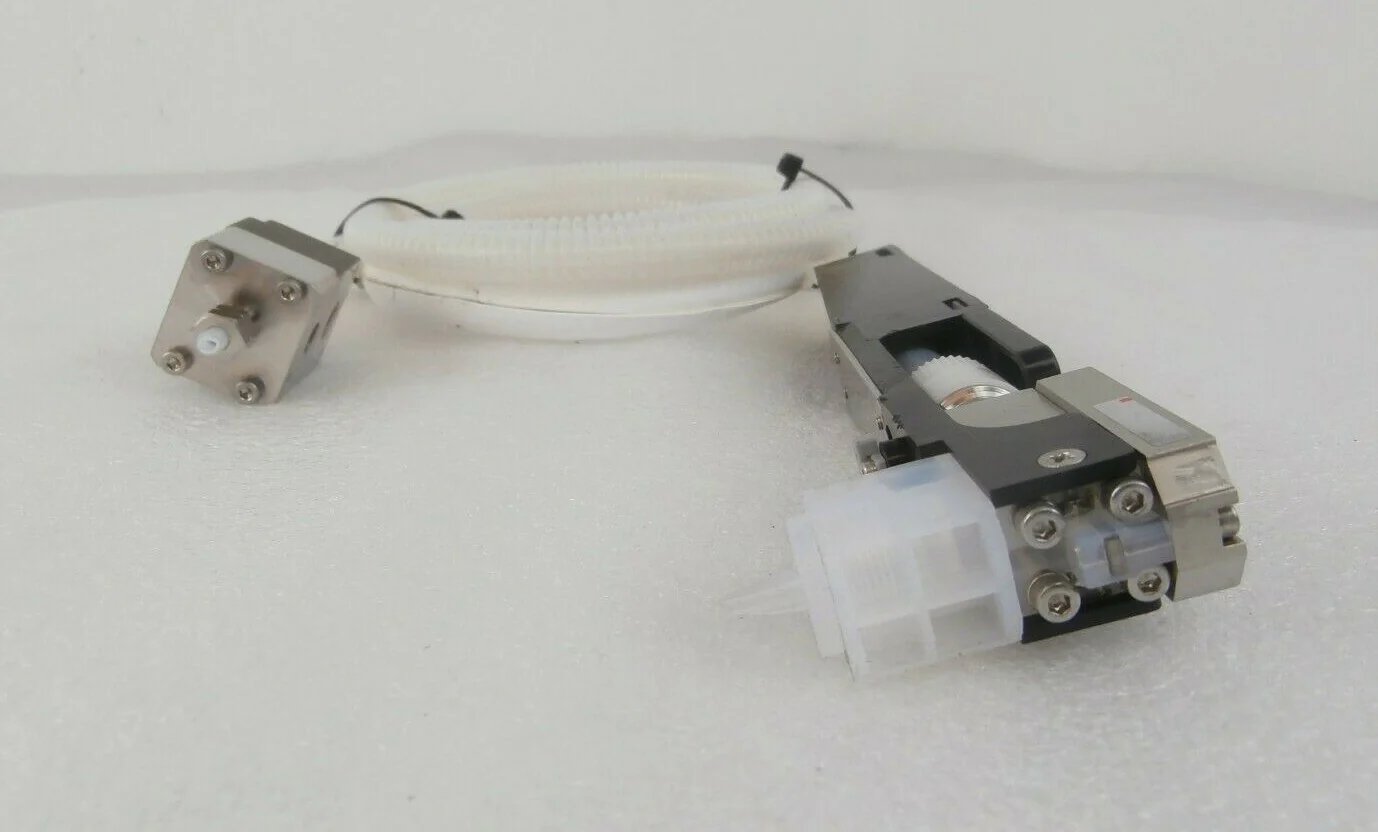

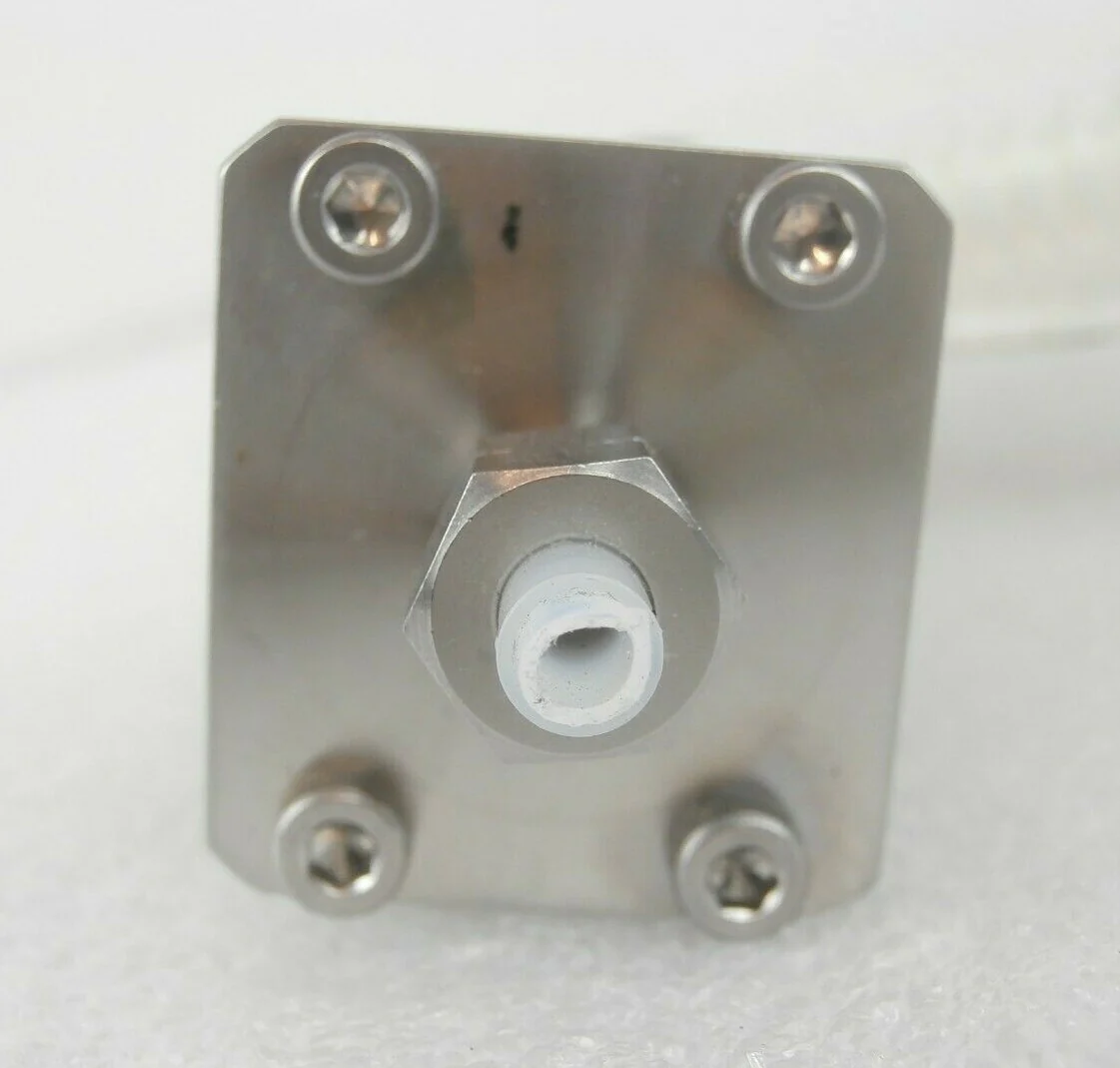

TEL Tokyo Electron 5087-403836-12 COT Nozzle SMC MA210-AM3-X276C Lithius Working

TEL Tokyo Electron 5087-403836-12 COT Nozzle SMC MA210-AM3-X276C Lithius Working

TEL Tokyo Electron 5087-403836-12 COT Nozzle SMC MA210-AM3-X276C Lithius Working

  • Part No: 5087-403836-12
  • Model No: NOZZLE (1-5) ASSY
  • 3.6.9
  • COT Coat Process Station
  • Removed from a TEL Tokyo Electron Clean Track Lithius System

    Installed Component

  • SMC Part No: MA210-AM3-X276C

    Parts List (approximation, some parts may vary)

  • 2910-426487-11 GASKET 1
  • 5004-300018-11 TIP,NOZZLE (509510025912 1
  • 5003-400002-11 STOPPER,CUT 1
  • 5004-400027-11 NUT,BLOCK (509510042511 2
  • 5004-400053-11 PLATE (509510101211 1
  • 5004-200006-11 CASE,LOW (509510063011 1
  • 5004-200005-11 CASE,UPR (509510062911 1
  • 5003-300026-11 BLOCK(2),JUNCTION 1
  • 5010-405489-11 TUBE SLEEVE 1
  • 5004-300019-11 JOINT (509510033211 1
  • 5004-300017-11 BODY (509510033311 1
  • 017-000214-1 TUBE,TEFLON NO.900-PTFE 4*3*0.5 3
  • 5017-000020-11 TUBE,POLYURETHANE U2-4-7.5*6 TRANSPARENT 20000L 1
  • 017006386-1 HOSE SNACLE HOSE 9*13 L1=1700 L2=40 1
  • 036-007024-1 #MAGNET TZ-0079 1
  • 5024-000074-11 FLTG JOINT TC4N4-TY02 1
  • 027-101580-1 O-RING NYTRYL S-18 BLACK 1
  • 020-000579-1 CAP SCREW M3*25 SUS304 FULL SCREW 4
  • 020-000169-1 FLAT COUNTERSUNK HEAD SCREW M3*4 SUS30 44
  • 020-000417-1 CAP SCREW M2*10 SUS304 2
  • 020-000177-1 FLAT COUNTERSUNK HEAD SCREW M3*8 SUS30 42
  • 032-000054-1 SPRING WASHER M3 SUS304 4
  • 020-000020-1 CAP SCREW M3*20 SUS304 4
  • 032-000159-1 FALT WASHER M3 SUS SMALL CIRCLE 4

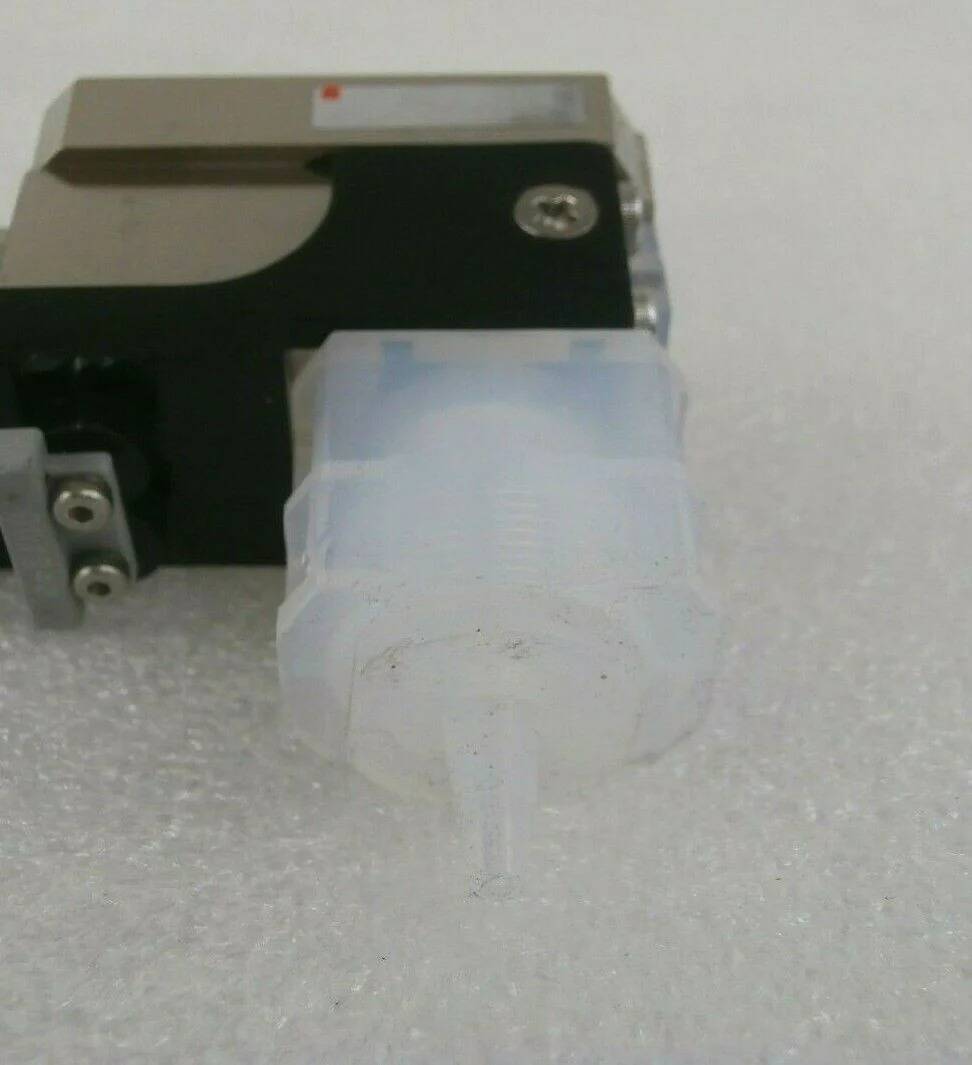

    This TEL Tokyo Electron 5087-403836-12 COT Nozzle is used working surplus. The SMC part number label may be faded but the assembly was verified via the head stamping (see photos). The physical condition is good, but there are signs of previous use and handling.

    • Sale Details

    • Item Condition: Used Working, 90 Day Warranty
    • Estimated Packed Shipping Dimensions: L x W x H = 16"x16"x16" @ 6 lbs.
    • Only items pictured are included: If a part is not pictured, or mentioned above, then it is not included in the sale. Pictured test equipment is not included or available for sale.
    • For items with multiple quantities: The pictured item is not necessarily the one that will be sent. Serial numbers or country of manufacture may vary.
    • Lister 31
