This TEL Tokyo Electron 848 TCP Transition Chill Plate Station Left is used working surplus. The physical condition is good, but there are signs of previous use and handling.
Sale Details
Item Condition: Used Working, 90 Day Warranty
Estimated Packed Shipping Dimensions: L x W x H = 36"x24"x14" @ 40 lbs.
Only items pictured are included: If a part is not pictured, or mentioned above, then it is not included in the sale. Pictured test equipment is not included or available for sale.
For items with multiple quantities: The pictured item is not necessarily the one that will be sent. Serial numbers or country of manufacture may vary.
Lister 0 RL
Listed with ExportYourStore.com
$451.54
Original: $1,505.13
-70%
TEL Tokyo Electron 848 TCP Transition Chill Plate Station Left ACT12-200 Working—
$1,505.13
$451.54
Description

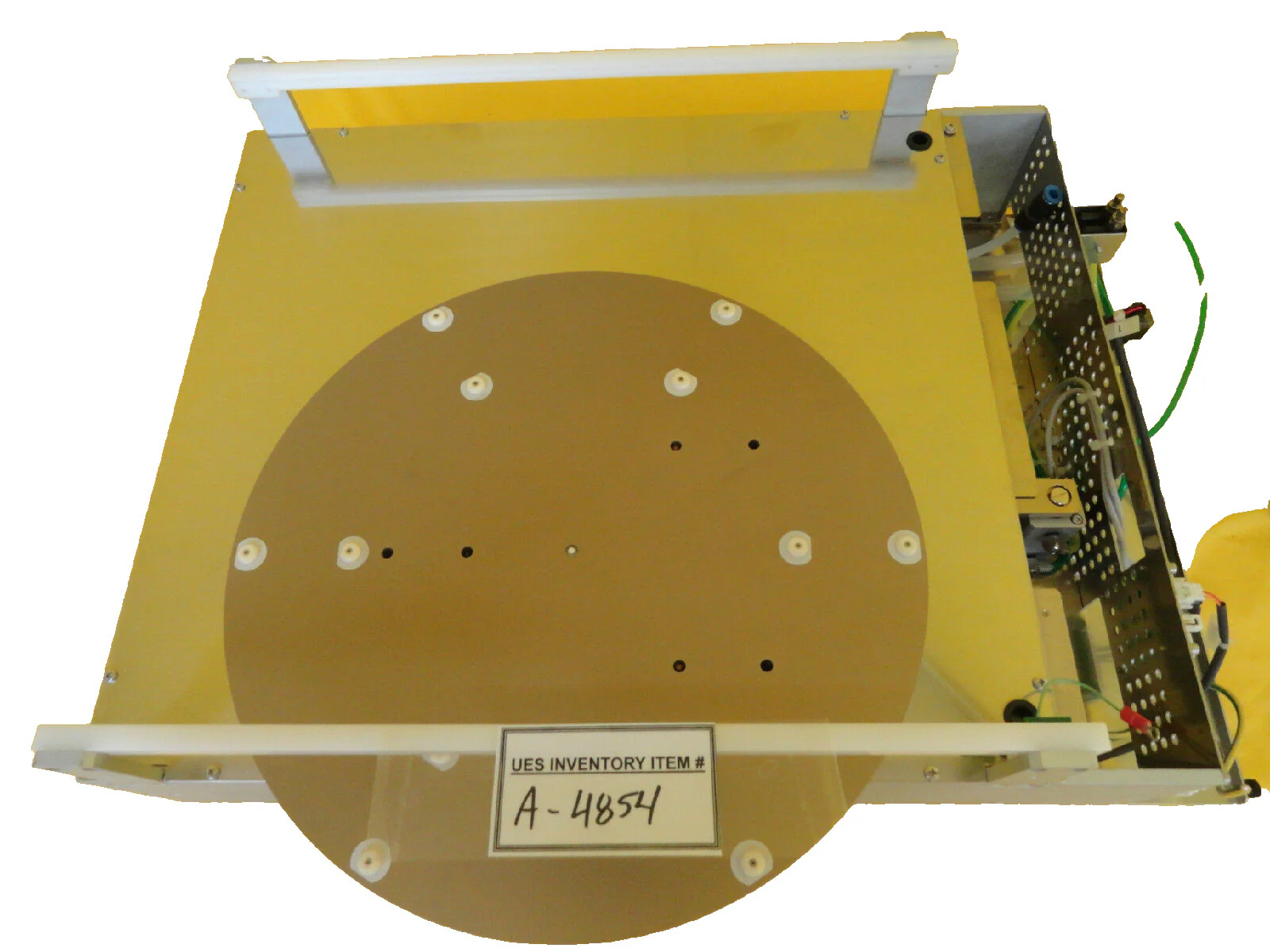

TEL Tokyo Electron 848 TCP Transition Chill Plate Station Left ACT12-200 Working
Part No: 848
Model No: TCP Transition Chill Plate Process Station (L)
Removed from a TEL Tokyo Electron ACT12-200 200mm System.
Made in Japan
Parts List
Assembly Part No: 2985-412580-W1 TCP UNIT ASSY (12)
2910-202853-12 PLATE
2903-200049-11 PLATE
2910-202867-11 PLATE
2910-202866-11 PLATE
2910-100467-11 PLATE
2910-100218-11 PLATE
2910-405362-11 PIN ARM
2910-307245-11 ARM
2910-202977-11 PLATE
2910-405343-11 SLIDER
2910-405344-11 SLIDER;
2910-405349-12 BRACKET (Qty 2)
2910-309544-11 BRACKET
2910-405346-11 STAND (Qty 2)
2910-405347-11 STAND
2910-405348-11 STAND
2910-202869-11 PLATE
2910-200128-11 PLATE
2910-405345-12 ARM
2910-490019-11 POSITIONING PIN
2903-300002-11 DAMPER
2910-490168-11 SB.(P)
2910-490104-11 B.SPCR (Qty 4)
2910-401397-11 PLATE
2910-400194-11 PLATE
2910-404203-11 BLOCK
2910-202855-12 PLATE
2910-401414-12 BRACKET
2910-401437-11 BRACKET
2910-401412-11 PLATE (Qty 2)
2910-407122-11 PLATE (Qty 2)
2910-401416-12 PLATE (Qty 2)
2910-401415-11 BRACKET 1
2910-301419-12 PLATE 1
2910-311563-11 BRACKET 1
018-002042-1 LM GUIDE RSR9ZM+73LM
024-014398-1 AIR CYLINDER CDQ2B16D-J8597-20 (299880007911
020-001438-1 WING BOLT M4*30 SUS304 2-TYPE FULL THD
This TEL Tokyo Electron 848 TCP Transition Chill Plate Station Left is used working surplus. The physical condition is good, but there are signs of previous use and handling.
Sale Details
Item Condition: Used Working, 90 Day Warranty
Estimated Packed Shipping Dimensions: L x W x H = 36"x24"x14" @ 40 lbs.
Only items pictured are included: If a part is not pictured, or mentioned above, then it is not included in the sale. Pictured test equipment is not included or available for sale.
For items with multiple quantities: The pictured item is not necessarily the one that will be sent. Serial numbers or country of manufacture may vary.
Lister 0 RL
Listed with ExportYourStore.com
